Simple Threshold binarization

image =	darkThresholdImg (inImg,inMaxThreshold)
image =	lightThresholdImg (inImg,inMinThreshold)
image =	thresholdImg (inImg,inMinThreshold,inMaxThreshold)

Detailed Description

Binarize an input image by thresholding, given minimum and maximum input thresholds.

On output image values are given by:

(with and corresponding to the minimum and maximum output thresholds)

Input and output images must have same size and buffer type.

Warning

The behaviour of this algorithm is undetermined if InThresholdMin or InThresholdMax is out of input image data type range.

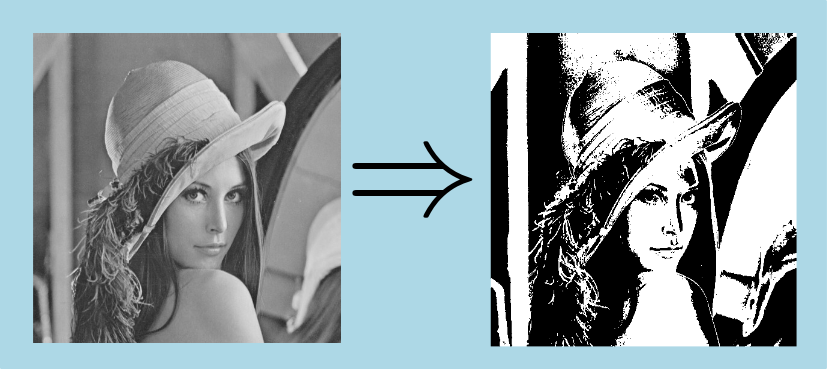

Here is an example of a binary threshold operation applied to an 8-bits grey levels input image (with and ):

See also

http://en.wikipedia.org/wiki/Thresholding_%28image_processing%29

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLBinarization as bin

Code Example

    # opening of input images
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # threshold computation
    outImg = bin.thresholdImg(inImg,  50,  127)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLBinarization/Processor/ThresholdImg/ThresholdImg.h>

Code Example

        // open input image
        ImageGeometryPtr pInputImageGeometry = geometry2d(inType, sizeX, sizeY);
        ImagePtr pInImg = loadRawImageFile(inPath, *pInputImageGeometry);

        // Sample with a generated output image
        // ------------------------------------

        // thresholding of input image
        ImagePtr pAutoOutImg = thresholdImg(pInImg, fInMinThreshold, fInMaxThreshold);

        // Sample with a provided output image
        // -----------------------------------

        // create output image
        ImageGeometryPtr pOutputImageGeometry = geometry2d(eImageBufferType::eIBT_Binary, sizeX, sizeY);
        boost::shared_ptr<MemoryImage> pOutImg(boost::make_shared<MemoryImage>());
        pOutImg->init(*pOutputImageGeometry);

        // thresholding of input image
        thresholdImg(pInImg, fInMinThreshold, fInMaxThreshold, pOutImg);
