image = erode3dImg (inImg3d,inSEXYZ)

Detailed Description

Algorithm for image 3d erosion.

Erosion and dilation are the two fundamental morphological operations.

These operations use a flat (with values in [0, 1]) structuring element combined to a Minkowski sum (in case of dilation) or subtraction (in case of erosion).

In erosion 3d case with an input image $ InImg3d $ and an input flat structuring element $ InSEXYZ $ , Minkowski subtraction is given by :

$OutImg = InImg3d \ominus InSEXYZ = \left \{ (x, y, z) / InSEXYZ_{(x, y, z)} \subseteq InImg3d \right \}$

with

$InSEXYZ_{(x, y, z)} = \left \{ (o_x + x, o_y + y, o_z + z) / (o_x, o_y, o_z) \in InSEXYZ \right \}$

In binary cases, this equation can be reexpressed as :

$OutImg[x, y, z] = (InImg3d \ominus InSEXYZ)[x, y, z] = \bigcap_{(o_x, o_y, o_z) \in InSEXYZ} InImg3d[(x+o_x, y+o_y, z+o_z)]$

In grayscale cases, this equation can be reexpressed as :

$OutImg[x, y, z] = (InImg3d \ominus InSEXYZ)[x, y, z] = \inf_{(o_x, o_y, o_z) \in InSEXYZ} InImg3d[(x+o_x, y+o_y, z+o_z)]$

Note: Behavior of this algorithm is specialized using specific morphological structuring elements (see 3d structuring elements for more informations about these shapes).
Please refer to Usage for examples of usage of different types of specific structuring elements during morphological operations.

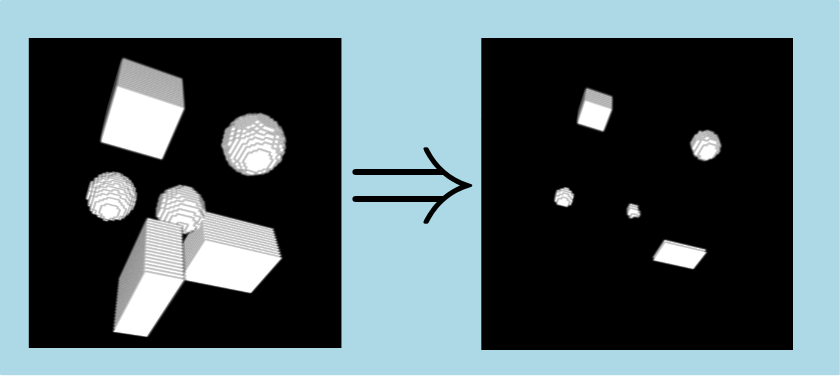

Here is an example of a erosion 3d extraction operation applied to a binary input image with a spherical structuring element with radius 3 :

See also: http://en.wikipedia.org/wiki/Erosion_%28morphology%29

Note: This algorithm is associated with a temporary working image ipsdk::imaproc::attr::OutOptWk1Img. This parameter is only used in special processing cases defined via ipsdk::imaproc::morpho::eSEProcessingCase enumerate. Such situation can be tested using ipsdk::imaproc::morpho::getSEProcessingCase function and associated image buffer type can be retrieved using ipsdk::imaproc::morpho::getSEWkImageBufferType. This working temporary image can be provided by user or will be automatically allocated when requested.

Example of Python code :

Example imports

import PyIPSDK

import PyIPSDK.IPSDKIPLBasicMorphology as morpho

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # definition of used structuring element
    inSE = PyIPSDK.sphericalSEXYZInfo(2)

    # erosion 3d image computation
    outImg = morpho.erode3dImg(inImg, inSE)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLBasicMorphology/Processor/Erode3dImg/Erode3dImg.h>

Code Example

    // create a 2x3x4 rectangular structuring element
    StructuringElementXYZInfoConstPtr pInSEXYZ = genericSEXYZInfo(*rectangularSEXYZ(2, 3, 4));
    // opening input image
    ImagePtr pInImg = loadTiffImageFile(inputImgPath);
    // compute erosion on input image
    ImagePtr pOutImg = erode3dImg(pInImg, pInSEXYZ);
