Connected Component 3d

image =	connectedComponent3dImg (inBinLabImg3d)
image =	connectedComponent3dImg (inBinLabImg3d,inOptNeighborhood3d)
scalar =	connectedComponent3dImg (inBinLabImg3d,inOptNeighborhood3d,outLabelImg3d)

Detailed Description

Connected component image 3d labeling algorithm.

Connected component labeling algorithm allows to uniquely labeled subsets of connected components with respect to a given neighborhood policy.

Output labels start with 1 and are consecutive with respect to scanning order (from lower x then y then z to higher).

For more informations on used neighborhood 3d types report to 3d neighborhood models.

Resulting image buffer type must be one of the following :

• ipsdk::image::eImageBufferType::eIBT_Label16
• ipsdk::image::eImageBufferType::eIBT_Label32

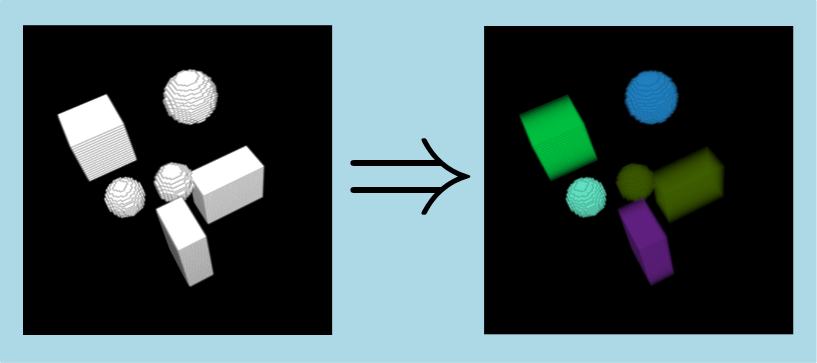

Here is an example of connected component extraction operation applied to a binary input image (with 26 connexity neighborhood type) :

The algorithm also allows to relabel a label image. This way all connected component will be assigned to a unique label.

Please, see Connected Component 2d for an illustration of relabeling in a 2d case.

Note

Last wrapper function returns number of extracted connected components (unique labels).

If number of extracted connected components exceed output image data type capacity (case of a number of connected components greater than 65535 and an output image associated to a ipsdk::image::eImageBufferType::eIBT_Label16 data type), output image data type is automatically upgraded to ipsdk::image::eImageBufferType::eIBT_Label32.

See also

http://en.wikipedia.org/wiki/Connected-component_labeling

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLAdvancedMorphology as advmorpho

Code Example

    # opening of input image
    inImg = PyIPSDK.loadTiffImageFile(inputImgPath)

    # connected components 3d computation
    outImg = advmorpho.connectedComponent3dImg(inImg)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLAdvancedMorphology/Processor/ConnectedComponent3dImg/ConnectedComponent3dImg.h>

Code Example

    // opening input image
    ImagePtr pInBinLabImg3d = loadTiffImageFile(inputImgPath);

    // compute connected component label image associated to input image
    ImagePtr pOutLabelImg3d = connectedComponent3dImg(pInBinLabImg3d);
