Bitwise norSee full documentation

image =

bitwiseNOrImgImg (inIntImg1,inIntImg2)

Detailed Description

Bitwise nor operation on 2 input images

On output image values are given by:

(with corresponding to the Bitwise not operator and corresponding to the Bitwise or operator)

Input and output images must have same size and buffer type. Buffers must be of type integer

A Bitwise nor operator applied to 2 integers performs the logical nor (abbreviation for "not or") operation on each pair of corresponding bits of the binary representation of these 2 integers. As shown in the truth table below, the result in each position is 1 if the first bit is 0 and the second bit is 0; otherwise, the result is 0.

Input bit #1	Input bit #2	Output bit :
0	0	1
0	1	0
1	0	0
1	1	0

For instance, if we compute the result of a Bitwise nor on the two integers 5 and 3, we obtain;

   0101 (decimal 5)
!| 0011 (decimal 3)
=  1000 (decimal 8)

See also

"Bitwise operation --- Wikipedia, The Free Encyclopedia", 2014, http://en.wikipedia.org/w/index.php?title=Bitwise_operation&oldid=604175200

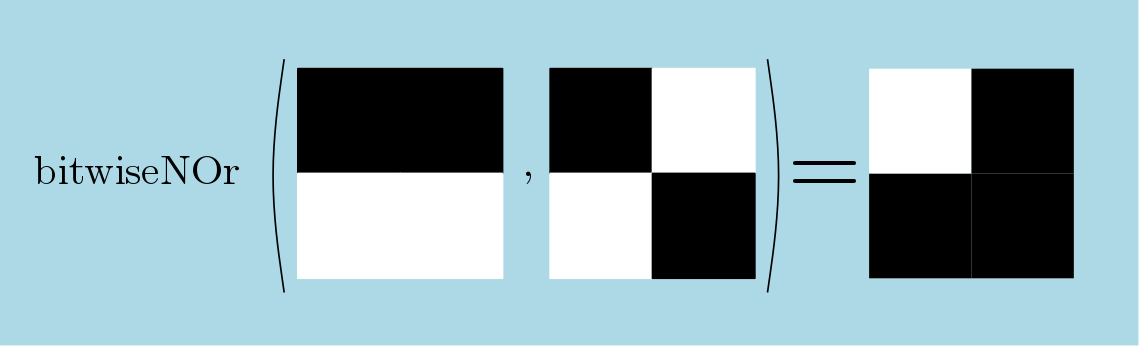

Here is an example of a Bitwise nor operation applied to two 2D binary images (black pixels have value 0, white pixels have value 1):

Example of Python code :

Example imports

import PyIPSDK
import PyIPSDK.IPSDKIPLLogical as logic

Code Example

    # opening of input images
    inImg1 = PyIPSDK.loadTiffImageFile(inputImgPath1)
    inImg2 = PyIPSDK.loadTiffImageFile(inputImgPath2)

    # bitwize 'nor' computation
    outImg = logic.bitwiseNOrImgImg(inImg1,  inImg2)

Example of C++ code :

Example informations

Header file

#include <IPSDKIPL/IPSDKIPLLogical/Processor/BitwiseNOrImgImg/BitwiseNOrImgImg.h>

Code Example

        // open input images
        ImageGeometryPtr pImageGeometry = geometry2d(inType, sizeX, sizeY);
        ImagePtr pInImg1 = loadRawImageFile(in1Path, *pImageGeometry);
        ImagePtr pInImg2 = loadRawImageFile(in2Path, *pImageGeometry);

        // compute bitwise not or on input images
        ImagePtr pOutImg = bitwiseNOrImgImg(pInImg1, pInImg2);
