AspectRatio

Measure the aspect ratio of a shape (measure based on polygonal or polyhedral approximation)

AspectRatio measure computes the aspect ratio of a shape, that equals to the minimal Feret diameter divided by the maximal Feret diameter of the shape (see MinFeretDiameter and MaxFeretDiameter)

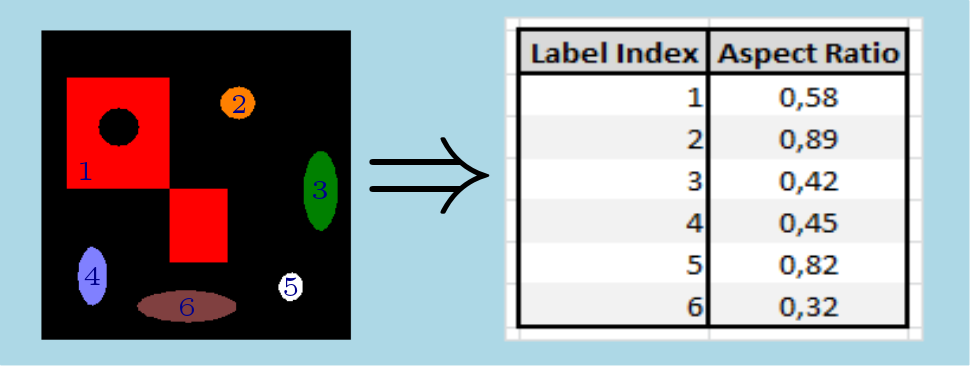

Here is an example of aspect ratio measurement with an orientation step of 1° on a 2d shape:

Measure the aspect ratio of a shape

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Generic	None	AspectRatioMsrParams	Value (ipsdk::ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 2d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet2d = PyIPSDK.createMeasureInfoSet2d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet2d, "AspectRatioMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis2d(inGreyImg, inLabelImg2d, inMeasureInfoSet2d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("AspectRatioMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Generic example in 3d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "AspectRatioMsr")

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outMsr = outMeasureSet.getMeasure("AspectRatioMsr")

    # retrieve measure values
    outMsrValues = outMsr.getMeasureResult().getColl(0)
    print("First label measurement equal " + str(outMsrValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg2d = loadTiffImageFile(inputGreyImgPath);

    // read entity shape 2d collection used for processing
    Shape2dCollPtr pShape2dColl = boost::make_shared<Shape2dColl>();
    readFromXmlFile(inputShape2dCollPath, *pShape2dColl);

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create2dInstance();
    createMeasureInfo(pMeasureInfoSet, "AspectRatioMsr", createAspectRatioMsrParams(180));

    // compute measure on shape 2d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis2d(pInGreyImg2d, pShape2dColl, pMeasureInfoSet);

    // retrieve associated results
    const MeasureConstPtr& pAspectRatioOutMsr = pOutMeasureSet->getMeasure("AspectRatioMsr");
    const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>& outResults = static_cast<const ipsdk::shape::analysis::ValueMeasureResult<ipsdk::ipReal64>&>(pAspectRatioOutMsr->getMeasureResult());
