Area3d

Shape 3d area measurement (measure based on polygonal approximation)

Area3d measure computes the area of the surface of the polyhedral approximation of shapes. For a shape, the area is simply the sum of the areae of the triangles forming the shape mesh.

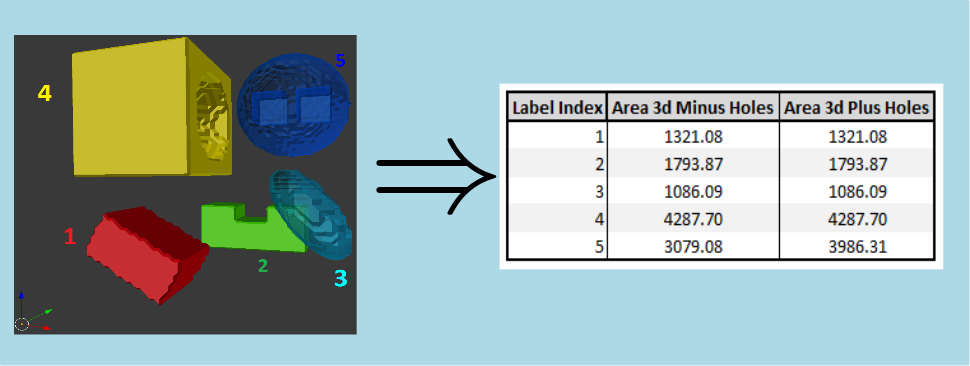

Here is an example of area 3d measurement :

Shape 3d area measurement (measure based on polyhedral approximation)

Measure synthesis :

Measure Type	Measure Unit Type	Parameter Type	Result Type	Shape Requirements
Geometry 3d	Area	Area3dMsrParams	Value (ipReal64)	Boundary Approximation

See Shape measurement for additional information on these pictograms

Example of Python code :

Generic example in 3d case :

import PyIPSDK
import PyIPSDK.IPSDKIPLShapeAnalysis as shapeanalysis

    # Create the infoset
    inMeasureInfoSet3d = PyIPSDK.createMeasureInfoSet3d()
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "AreaMinusHoles", "Area3dMsr", shapeanalysis.createHolesBasicPolicyMsrParams(True))
    PyIPSDK.createMeasureInfo(inMeasureInfoSet3d, "AreaWithHoles", "Area3dMsr", shapeanalysis.createHolesBasicPolicyMsrParams(False))

    #Perform the analysis
    outMeasureSet = shapeanalysis.labelAnalysis3d(inGreyImg, inLabelImg, inMeasureInfoSet3d)

    # save results to csv format
    PyIPSDK.saveCsvMeasureFile(os.path.join(tmpPath,  "shape_analysis_results.csv"), outMeasureSet)

    # retrieve measure results
    outAreaMinusHolesMsr = outMeasureSet.getMeasure("AreaMinusHoles")
    outAreaWithHolesMsr = outMeasureSet.getMeasure("AreaWithHoles")

    # retrieve measure values
    outAreaWithHolesValues = outAreaWithHolesMsr.getMeasureResult().getColl(0)
    print("First label area with holes measurement equal " + str(outAreaWithHolesValues[1]))

Example of C++ code :

Example informations

Associated library

IPSDKIPLShapeAnalysis

Code Example

    // opening grey level input image
    ImagePtr pInGreyImg3d = loadTiffImageFile(inputGreyImgPath, eTiffDirectoryMode::eTDM_Volume);

    // read entity shape 3d collection used for processing
    Shape3dCollPtr pShape3dColl = boost::make_shared<Shape3dColl>();
    readFromBinaryFile(inputShape3dCollPath, *pShape3dColl);

    // define a measure info set
    MeasureInfoSetPtr pMeasureInfoSet = MeasureInfoSet::create3dInstance();
    createMeasureInfo(pMeasureInfoSet, "Area3dMsr", createHolesBasicPolicyMsrParams(bProcessHoles));

    // compute measure on shape 3d collection
    MeasureSetPtr pOutMeasureSet = shapeAnalysis3d(pInGreyImg3d, pShape3dColl, pMeasureInfoSet);

    // retrieve associated results
    const MeasureConstPtr& pArea3dOutMsr = pOutMeasureSet->getMeasure("Area3dMsr");
    const ValueMeasureResult<ipReal64>& outResults = static_cast<const ValueMeasureResult<ipReal64>&>(pArea3dOutMsr->getMeasureResult());
